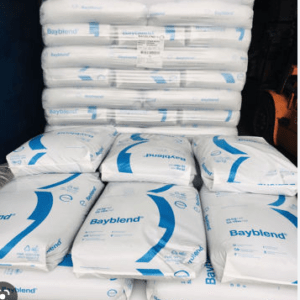

Raw Material PC ABS BAYBLEND FR 3010 000000 NATURAL,Make:-Covestro (Rs.546.60/kg); Location:-Pantnagar (Utrrakhand)

₹6,000.00 Original price was: ₹6,000.00.₹5,466.00Current price is: ₹5,466.00.

Product Description (PC+ABS) blend; unreinforced; flame-retardant; injection molding grade; increased heat resistance; Vicat/B 120 temperature = 110 °C; UL recognition 94 V-0 (1.5 mm); glow wire test (GWFI): 960 °C (2.0 mm); improved chemical resistance and stress cracking behavior; successor to FR2010. General Material Status • Commercial: Active Literature 1 • Technical Datasheet (Chinese (Traditional)) • Technical Datasheet (Chinese) • Technical Datasheet (English) • Technical Datasheet (German) • Technical Datasheet (Japanese) UL Yellow Card 2 • E41613-268915 Search for UL Yellow Card • Covestro – Polycarbonates • Bayblend® Availability • Africa & Middle East • Asia Pacific • Europe • Latin America • North America Additive • Flame Retardant Features • Chemical Resistant • Flame Retardant • High ESCR (Stress Crack Resist.) • Medium Heat Resistance RoHS Compliance • RoHS Compliant Processing Method • Injection Molding Physical Nominal Value (English) Nominal Value (SI) Test Method Density (73°F (23°C)) 1.18 g/cm³ 1.18 g/cm³ ISO 1183 Melt Volume-Flow Rate (MVR) (240°C/5.0 kg) 0.915 in³/10min 15.0 cm³/10min ISO 1133 Molding Shrinkage 4 ISO 2577 Across Flow : 464°F (240°C), 0.118 in (3.00 mm) 0.50 to 0.70 % 0.50 to 0.70 % Flow : 464°F (240°C), 0.118 in (3.00 mm) 0.50 to 0.70 % 0.50 to 0.70 % Water Absorption ISO 62 Saturation, 73°F (23°C) 0.50 % 0.50 % Equilibrium, 73°F (23°C), 50% RH 0.20 % 0.20 % Mechanical Nominal Value (English) Nominal Value (SI) Test Method Tensile Modulus (73°F (23°C)) 392000 psi 2700 MPa ISO 527-2/1 Tensile Stress ISO 527-2/50 Yield, 73°F (23°C) 8700 psi 60.0 MPa Break, 73°F (23°C) 7250 psi 50.0 MPa Tensile Strain ISO 527-2/50 Yield, 73°F (23°C) 4.0 % 4.0 % Break, 73°F (23°C) > 50 % > 50 % Impact Nominal Value (English) Nominal Value (SI) Test Method Notched Izod Impact Strength ISO 180/A -22°F (-30°C) 4.8 ft·lb/in² 10 kJ/m² 73°F (23°C) 17 ft·lb/in² 35 kJ/m² Unnotched Izod Impact Strength (73°F (23°C)) No Break No Break ISO 180 Thermal Nominal Value (English) Nominal Value (SI) Test Method Heat Deflection Temperature 66 psi (0.45 MPa), Unannealed 212 °F 100 °C ISO 75-2/B 264 psi (1.8 MPa), Unannealed 194 °F 90.0 °C ISO 75-2/AThermal Nominal Value (English) Nominal Value (SI) Test Method Vicat Softening Temperature — 226 °F 108 °C ISO 306/B50 — 230 °F 110 °C ISO 306/B120 CLTE ISO 11359-2 Flow : 73 to 131°F (23 to 55°C) 4.2E-5 in/in/°F 7.6E-5 cm/cm/°C Transverse : 73 to 131°F (23 to 55°C) 4.4E-5 in/in/°F 8.0E-5 cm/cm/°C Electrical Nominal Value (English) Nominal Value (SI) Test Method Surface Resistivity 1.0E+16 ohms 1.0E+16 ohms IEC 60093 Volume Resistivity (73°F (23°C)) 1.0E+16 ohms·cm 1.0E+16 ohms·cm IEC 60093 Electric Strength IEC 60243-1 73°F (23°C), 0.0394 in (1.00 mm) 890 V/mil 35 kV/mm Relative Permittivity IEC 60250 73°F (23°C), 100 Hz 3.20 3.20 73°F (23°C), 1 MHz 3.10 3.10 Dissipation Factor IEC 60250 73°F (23°C), 100 Hz 5.0E-3 5.0E-3 73°F (23°C), 1 MHz 7.0E-3 7.0E-3 Comparative Tracking Index (Solution A) 350 V 350 V IEC 60112 Flammability Nominal Value (English) Nominal Value (SI) Test Method Flame Rating UL 94 0.0591 in (1.50 mm) V-0 V-0 0.0787 in (2.00 mm) 5VB 5VB 0.118 in (3.00 mm) 5VA 5VA Fill Analysis Nominal Value (English) Nominal Value (SI) Test Method Melt Viscosity 5 (500°F (260°C)) 245 Pa·s 245 Pa·s ISO 11443-A Notes 1  These links provide you with access to supplier literature. We work hard to keep them up to date; however you may find the most current literature from the supplier. 2  A UL Yellow Card contains UL-verified flammability and electrical characteristics. UL Prospector continually works to link Yellow Cards to individual plastic materials in Prospector, however this list may not include all of the appropriate links. It is important that you verify the association between these Yellow Cards and the plastic material found in Prospector. For a complete listing of Yellow Cards, visit the UL Yellow Card Search. 3  Typical properties: these are not to be construed as specifications. 4  150x105x3 mm, 80°C MT 5  1000/s
